[ S810-C ]






LED 810-C INSTRUCTIONS
1.      Working voltage: DC24V, DC36V, DC48V
2.      Functions:

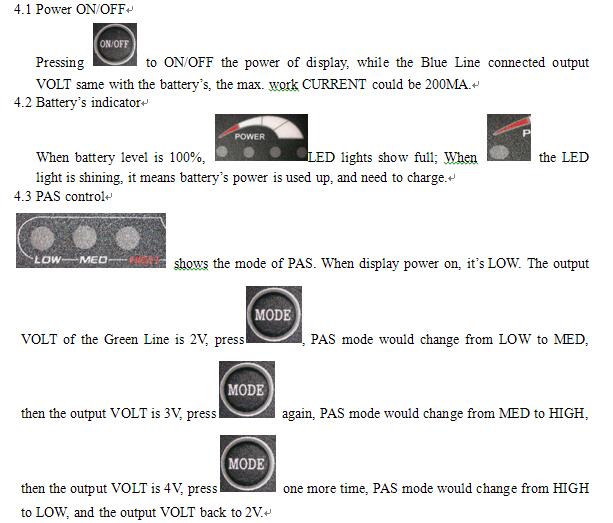

Power ON/OFF (Electric door lock);
Battery indicator;
PAS control (3 modes);

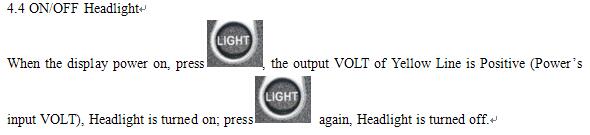

ON/OFF Headlight;
Auto-sleep when there’s no any operation for 10 minutes.

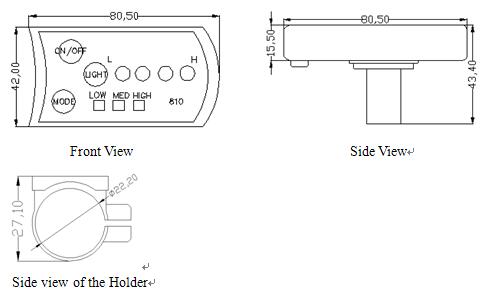

3.      Shell’s size and material
The shell is made of ABS, which could work well under the temperature from -20℃ to 60℃, and it promises good mechanical capacity.




1.      Operation Instructions



Connections:

1.      Red Line: Power Positive

2.      Black Line: Power Negative

3.      Blue Line: Controller’s Electric door lock

4.      Green Line: Controller’s PAS strength

5.      Yellow Line: Headlight Positive

6.      White Line: Headlight Negative
